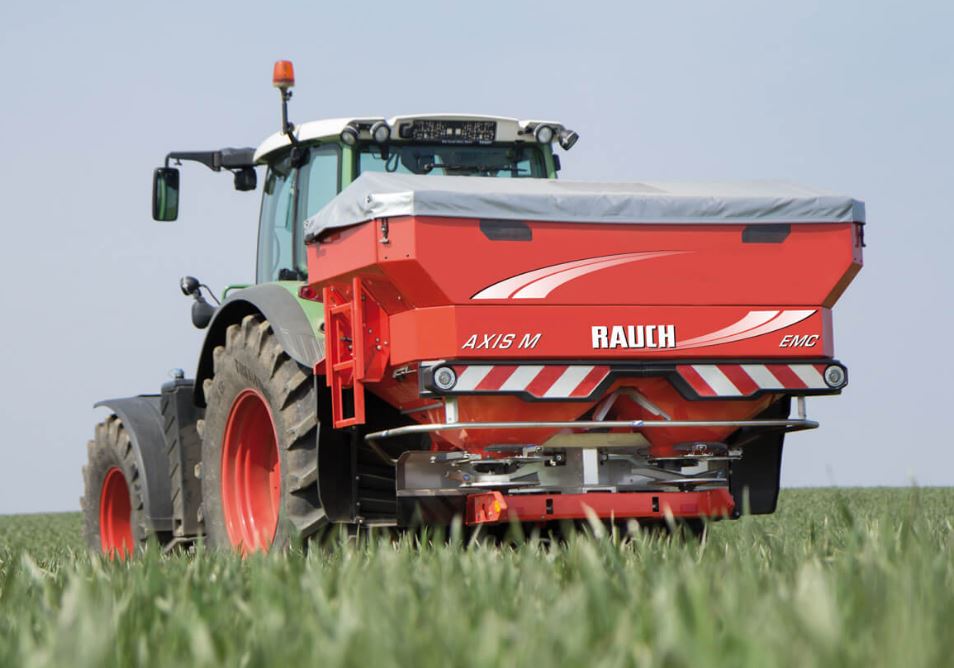

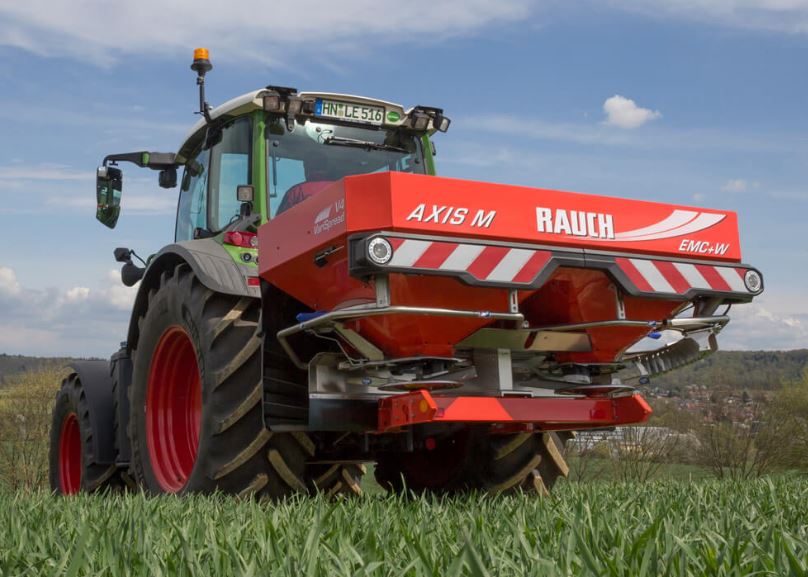

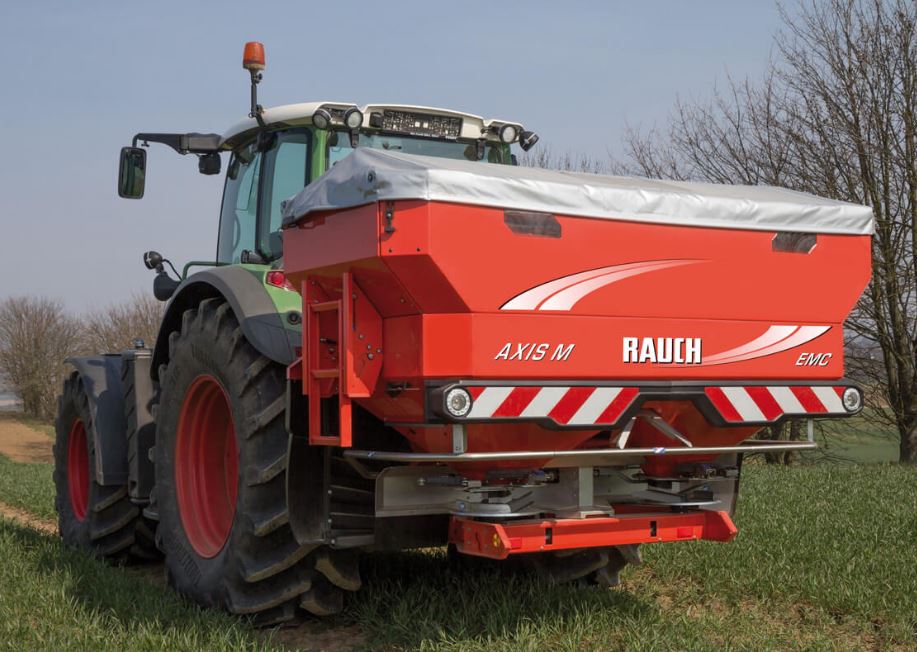

Rauch AXIS M 30.2 Fertiliser Sower

PROFESSIONAL TWO-DISC FERTILISER SPREADER

WITH FULLY AUTOMATIC EMC METERING SYSTEM



AXIS M 30.2 EMC (+W) offers precise, powerful spreading technology for demanding farmers. With its unique performance potential and innovative detail solutions, it sets new standards in elegant operating comfort, high spreading precision and economic efficiency.



Working width [ m ] - 12 – 42m

Hopper volume [ l ] - 1,400

Max. capacity [ kg ] - 3,200

Filling Height [ cm ] - 107

Filling Width [ cm ] - 230

Empty Weight [ Kg ] - 335



The innovative M-Drive for the throwing discs and the slow-running, fertilizer-friendly agitators is maintenance-free for years. All shafts and angular gears run in an oil or grease bath and are protected from fertilizer dust, dirt, moisture and mechanical damage by a robust frame construction.

Unique in fertilizer technology, AXIS features overload protection systems that protect the entire gear unit, including the fertilizer-protecting agitators, from overload caused by jams, operator error or hard-shifting PTOs.



The innovative agitator drive for the slow-running, fertilizer-sparing agitators is
maintenance-free for years. Overload protection systems protect the entire agitator unit from overstress due to blockages.
